Speedometer cable 16V | R19, Clio, R21
Speedometer cable 16V | R19, Clio, R21
Project status
The speedometer cable is currently in the final development and pre-series phase. Here you can see where we are:
Current progress: approx. 70%

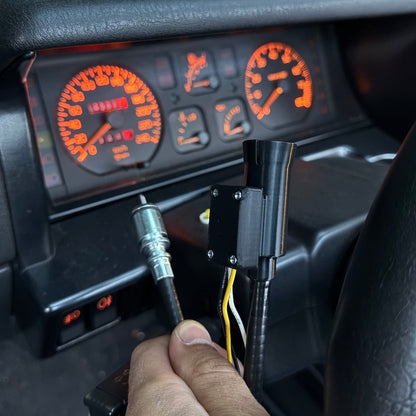

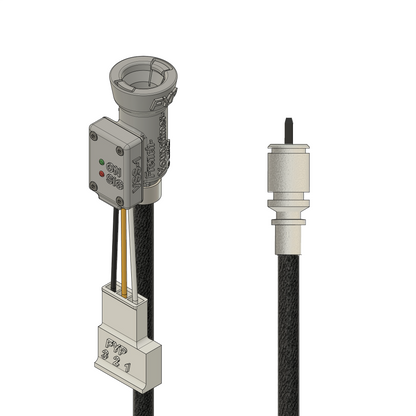

Speedometer cable – Renault 19 / Clio 16V / R21 Turbo | LHD/RHD
Ten years of stagnation – now we're bringing back the speedometer cable. New speedometer cables with electronic sensors have been unavailable for years. If one fails, the speed signal to the control unit is lost, or the speedometer needle vibrates. Not something any classic car enthusiast wants. That's precisely why we're developing a new cable.
Our solution utilizes a newly developed electronic circuit board. The signal is digitally captured and precisely transmitted to the control unit – more robust than the original and with integrated diagnostic functionality. The speedometer itself remains mechanical; the engine control unit receives the speed signal.
✅ Features / Highlights:
- Plug & Play – completely new speedometer cable, directly replaceable
- Newly developed sensor for speed measurement Made in Berlin
- Integrated diagnostic capability – directly visible whether everything is working.

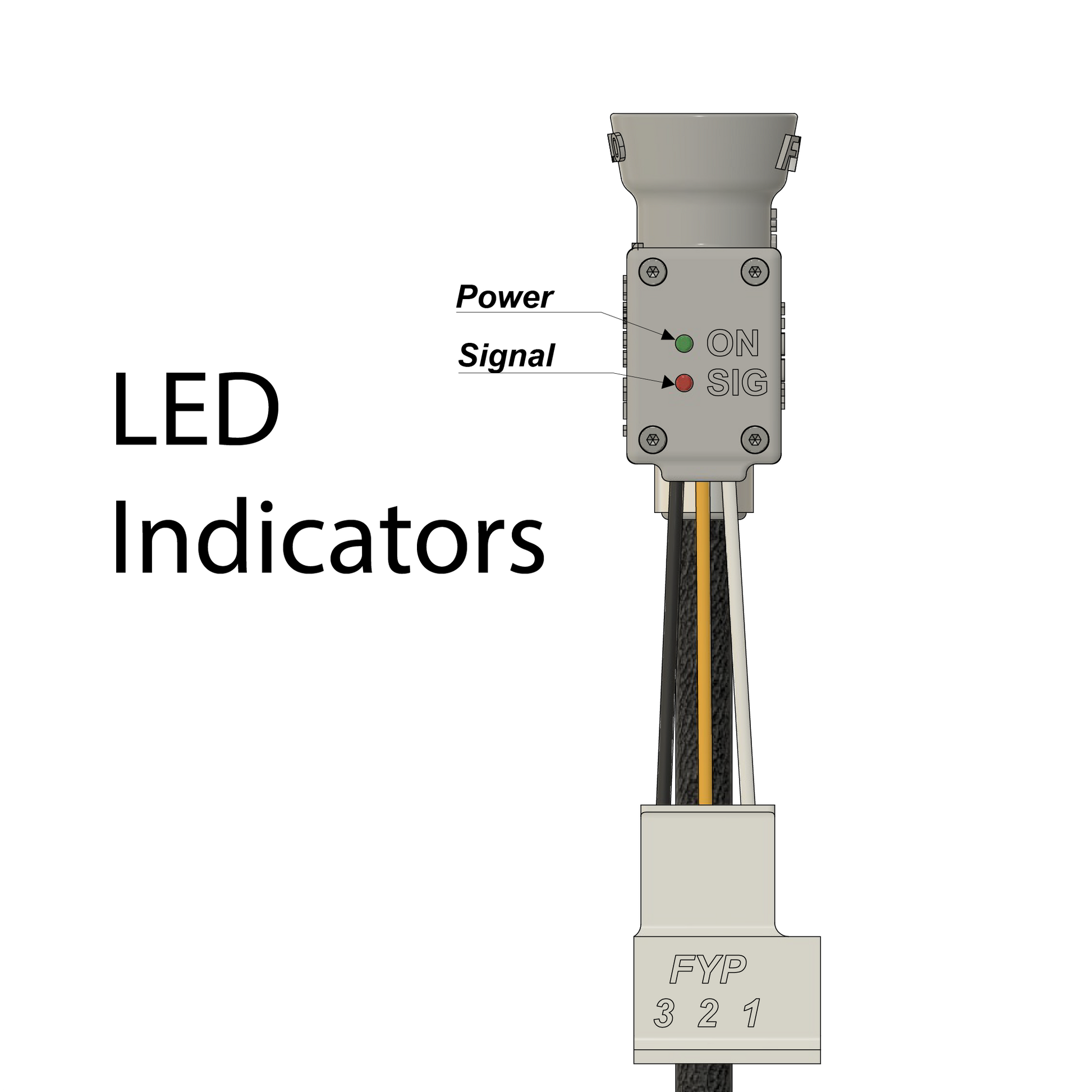

- LEDs indicate the status of the sensor and the signal.
- Protected against reverse polarity, overvoltage & short circuit
- The speedometer cable (mechanical) is already greased.
- Sturdy housing and extremely tested (including drop tests)
- Each wave is handmade and comes with a certificate of inspection .
- Tested over several thousand kilometers in everyday use
- Variants for R19 16V, Clio 16V / Williams and R21 Turbo – each as LHD and RHD
🔧 Technical Information & Notes:

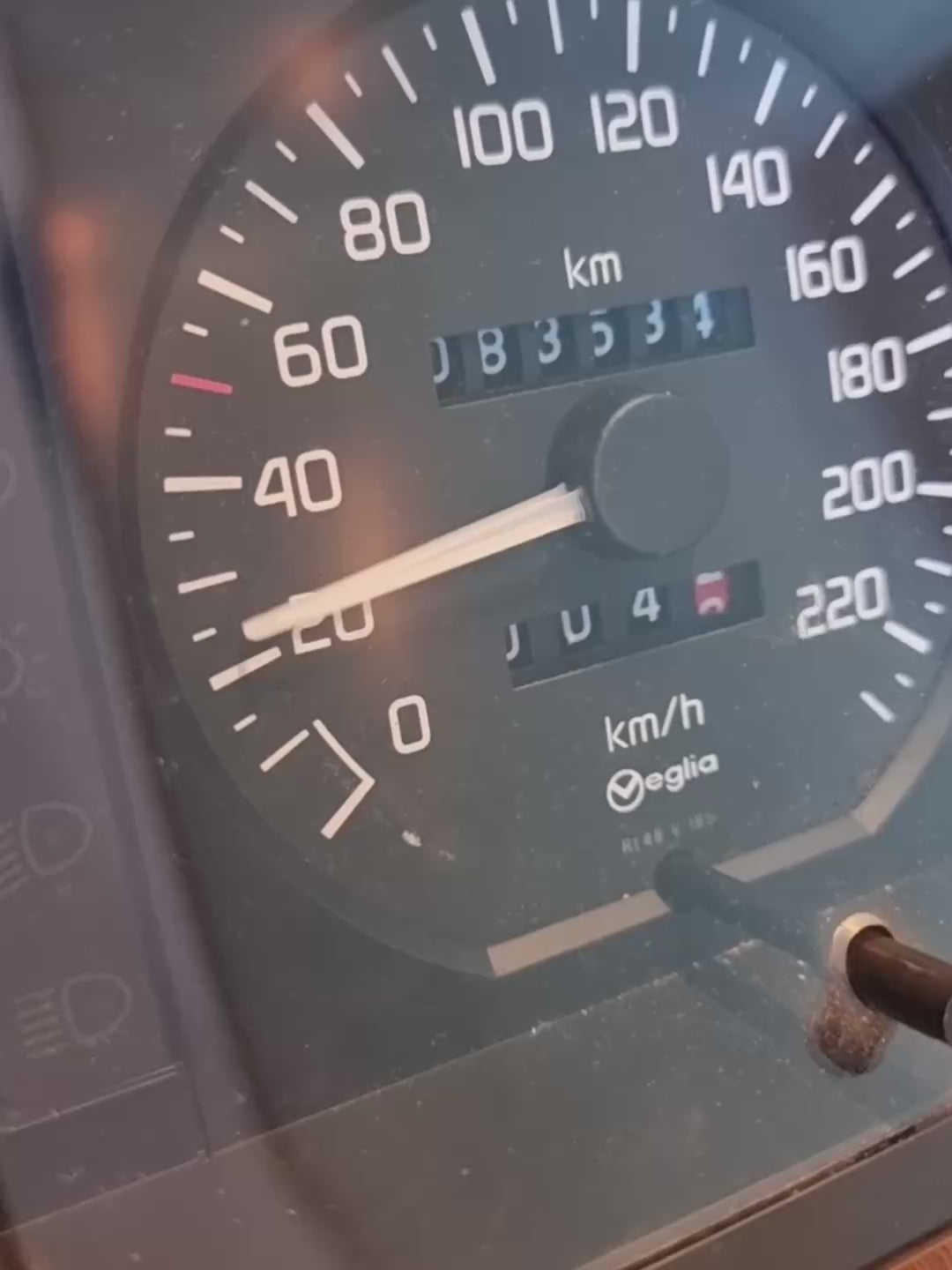

The speedometer is still mechanically driven via the cable. So everything remains original and you keep the analog display in the cockpit.
The speed signal is detected by the newly developed sensor, stabilized, and transmitted to the engine control unit . It is important for idle speed , not for the speedometer (except in special cases with an on-board computer).

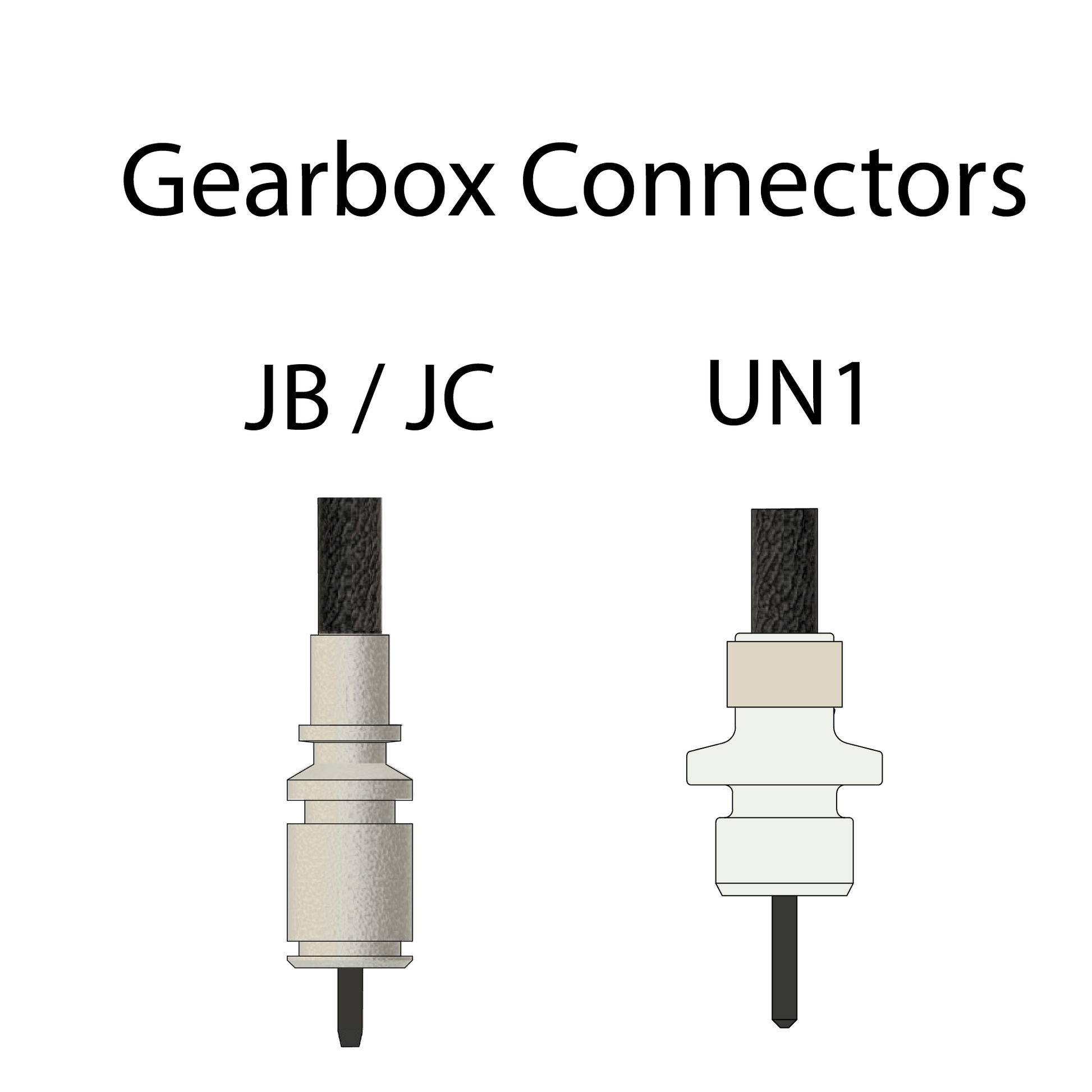

When ordering, please select your exact vehicle (R19 16V, Clio 16V, R21 Turbo) and the appropriate steering system (left-hand/right-hand drive). The length and routing of the shaft and connector differ depending on the model and steering system.
📦 Scope of delivery:
1x Speedometer cable Plug & Play (as selected)
1× Instruction manual
1x Test certificate
🔍 Suitable for:
Renault 19 16V – LHD / RHD
Renault Clio 16V / Williams – LHD / RHD
Renault 21 Turbo – LHD / RHD
This also applies to all of these vehicles equipped with an on-board computer.
📌 OEM Part Numbers (compatible):
This speedometer cable replaces, among others, the following original Renault references:
- 7700830683
- 7700842637
- 7700841187
- 7700796637
- 7700796638
- 7700841194
Note: Renault used several part numbers for the same speedometer cable depending on the year of manufacture, series, and production stage. The numbers mentioned above are for guidance only.
🤝 Part of the community.
We develop, test, and drive the parts ourselves and share the story in our Reels and posts. If you like, send us pictures of your installation or your Renault: together we keep our classic cars on the road.
⚠️ Important notice:
Please carefully select the correct variant (vehicle + steering). An incorrect combination can lead to problems with installation or connector connection. If you are unsure, please check the length of the existing shaft and compare the connector type, or contact us before ordering.
👉 Keep legends young.
